Applications

This decoder is ideal for radio stations needing a stable and professional studio-to-transmitter link. It can receive uncompressed PCM audio from encoders such as the Escape PCM STL Radio Link Encoder, or connect directly to Shoutcast/Icecast internet streams. From there, it generates the stereo MPX signal for FM transmitters, ensuring consistent, on-air broadcast quality.

Key Features

• Compatible with Raspberry Pi 4 / 5 and HiFiBerry or IQAudio sound cards.

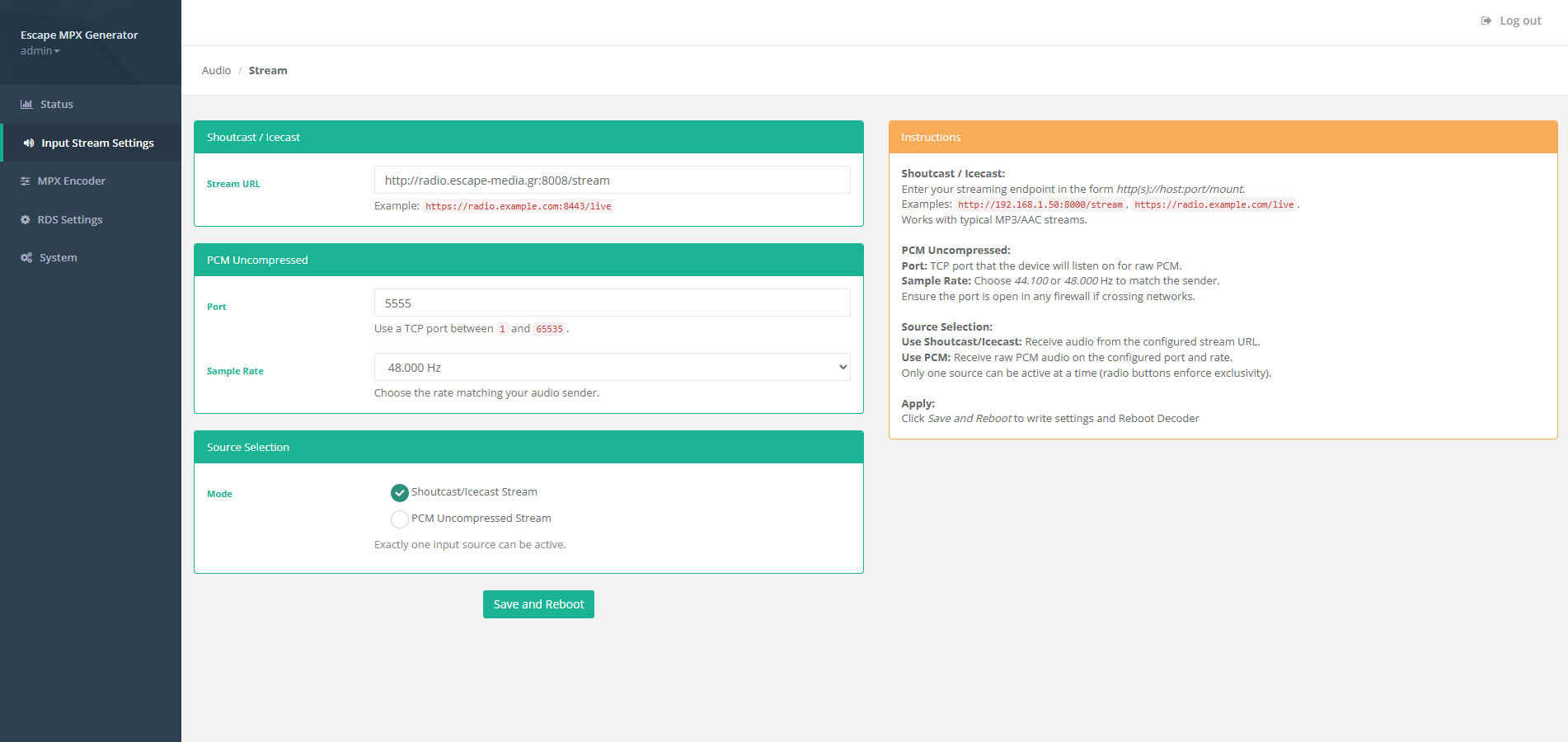

• Receives either PCM Uncompressed streams or Shoutcast/Icecast streams.

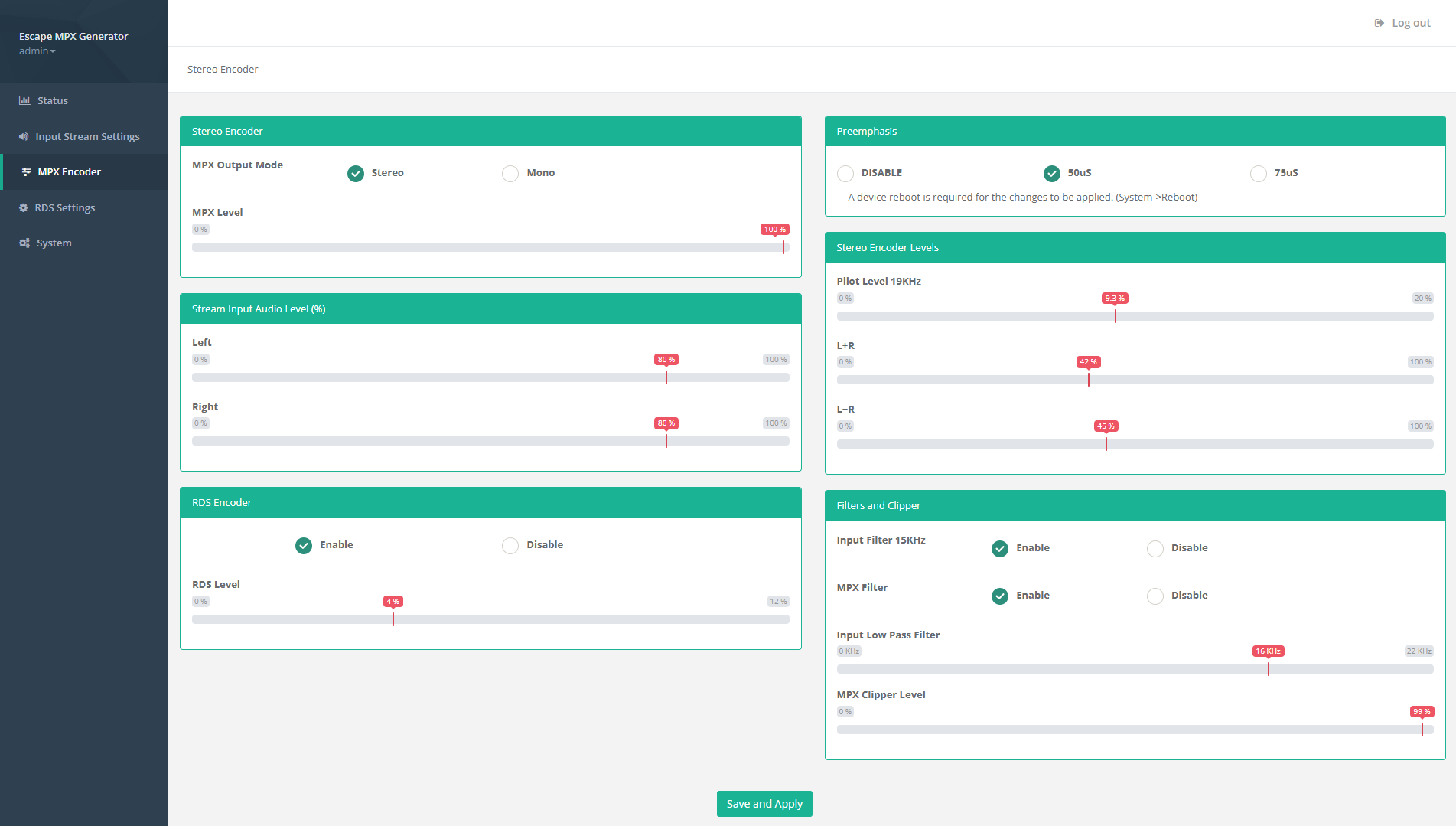

• Generates high-quality MPX stereo signal with adjustable pre-emphasis, input/output filters, and MPX clipper.
• Built-in Wi-Fi access for configuration via mobile phone, tablet, or PC.

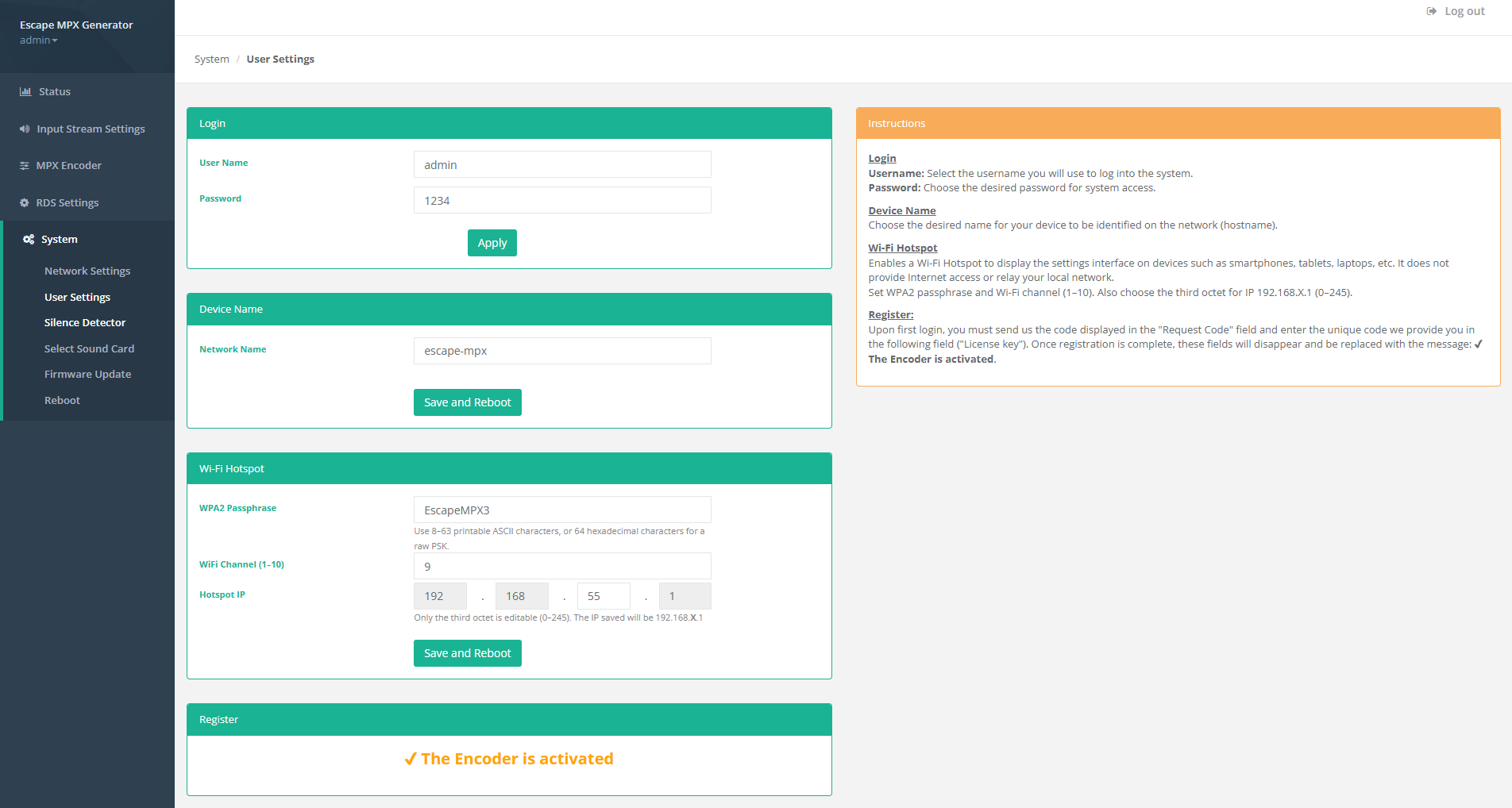

• Web-based configuration menu for simple local or remote management.
• Integrated Silence Detector with automatic reboot in case of system freeze or audio loss.

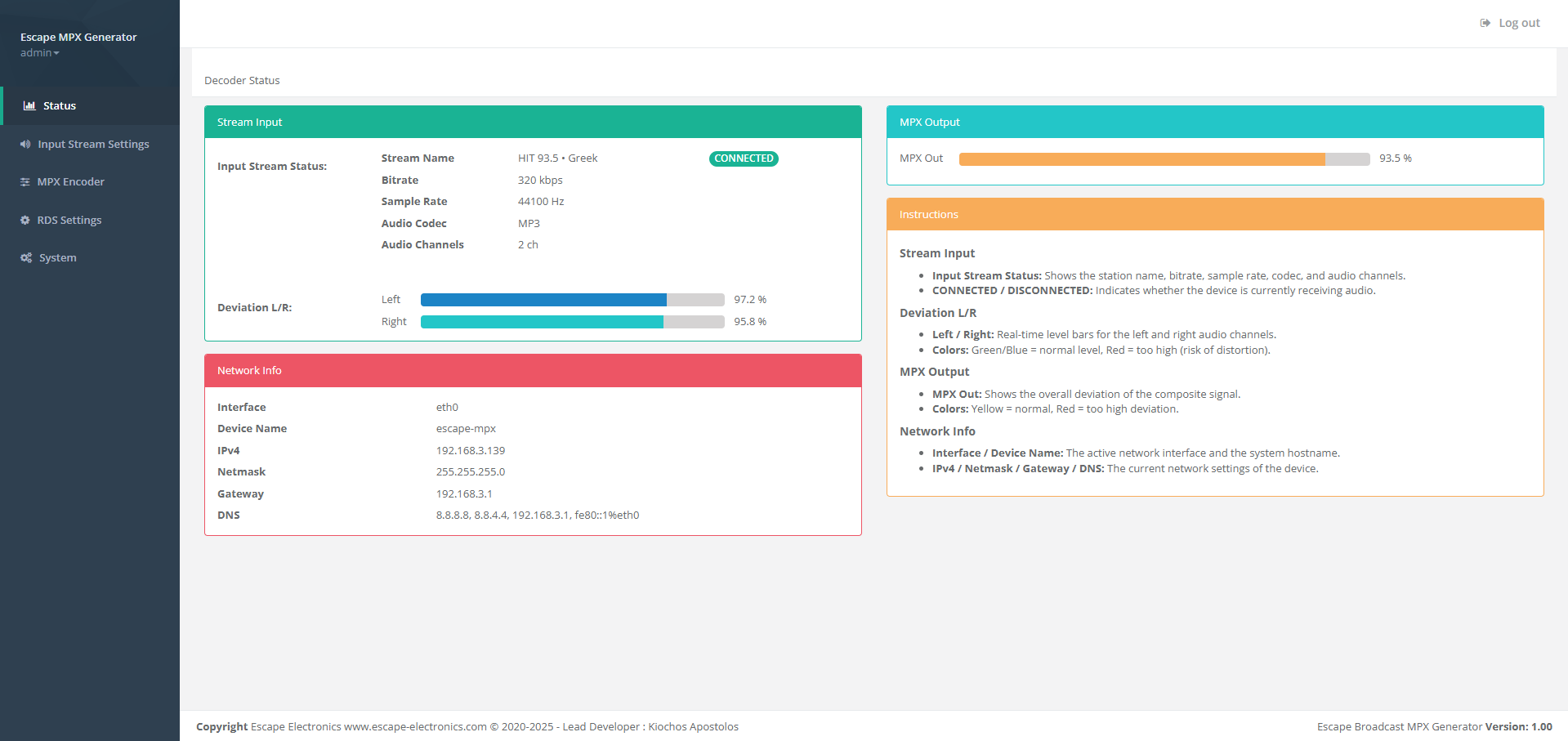

• Complete Status and Monitoring section for audio levels, deviation, and stream information.
• Supports most 4G/5G USB modems, allowing data reception without requiring a wireless link.

Advanced RDS Features

The integrated RDS generator can operate stand-alone with settings programmed directly from the web menu, or be controlled remotely via ASCII TCP software such as Jazler. It supports Program Service (PS), Radio Text (RT), PI/PTY codes, AF lists, and additional RDS flags for full broadcast compliance.

Network & Control

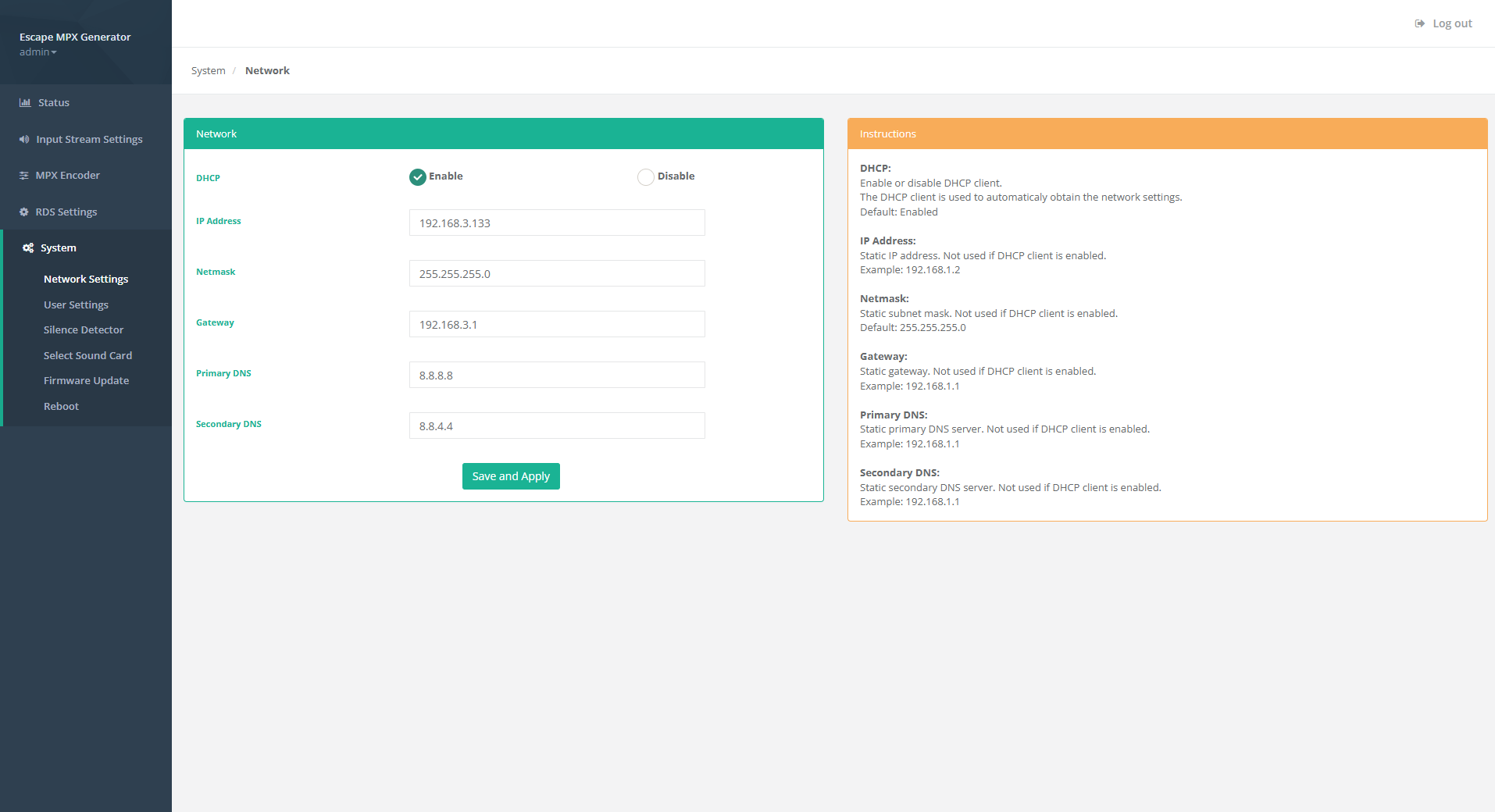

Flexible network configuration is supported with DHCP or static IP, gateway, and DNS settings. Remote firmware updates, user access control, and device management are included, ensuring reliability and security in professional environments.

Reliability

Designed for 24/7/365 operation, the system provides continuous audio delivery with automatic recovery features, making it ideal for mission-critical broadcasting applications.
